| Standartlar ve Protokoller | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
|---|
| Arabirim | Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
|
|---|
| Ağ Medyası | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
|
|---|
| Fan Sayısı | Fanless |
|---|
| Güç Kaynağı | External Power Adapter (Output: 53.5 VDC/1.31 A) |
|---|

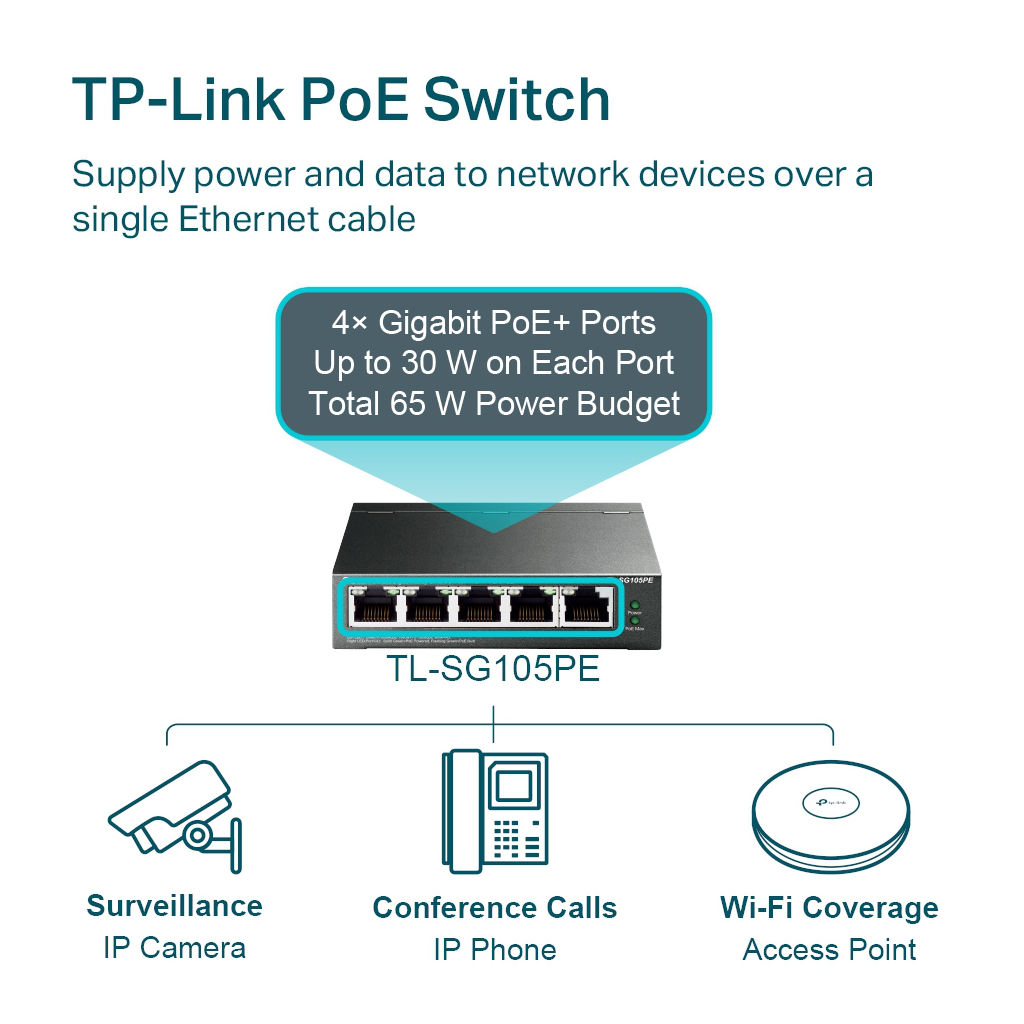

| PoE Portları (RJ45) | Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
|
|---|
| Boyutlar ( W X D X H ) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
|---|
| Maks. Güç Tüketimi | 4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected) |
|---|
| Max Heat Dissipation | 15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected) |
|---|
