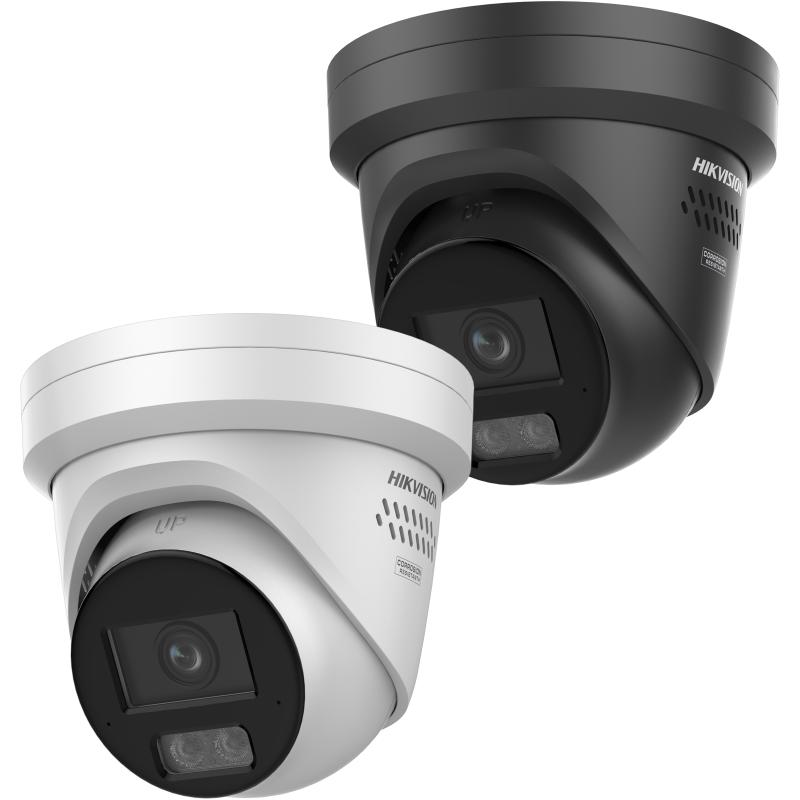

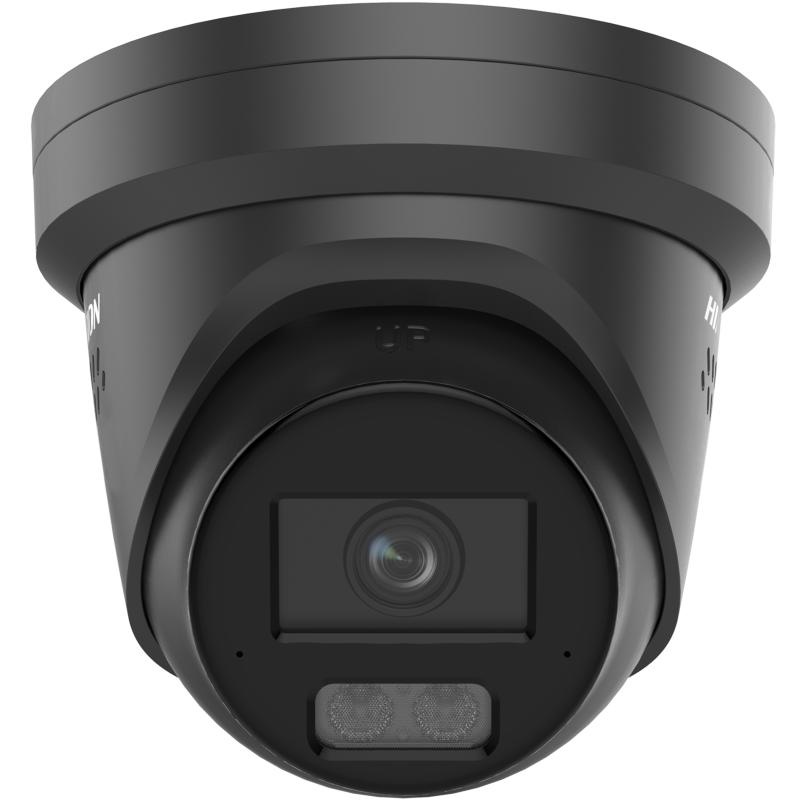

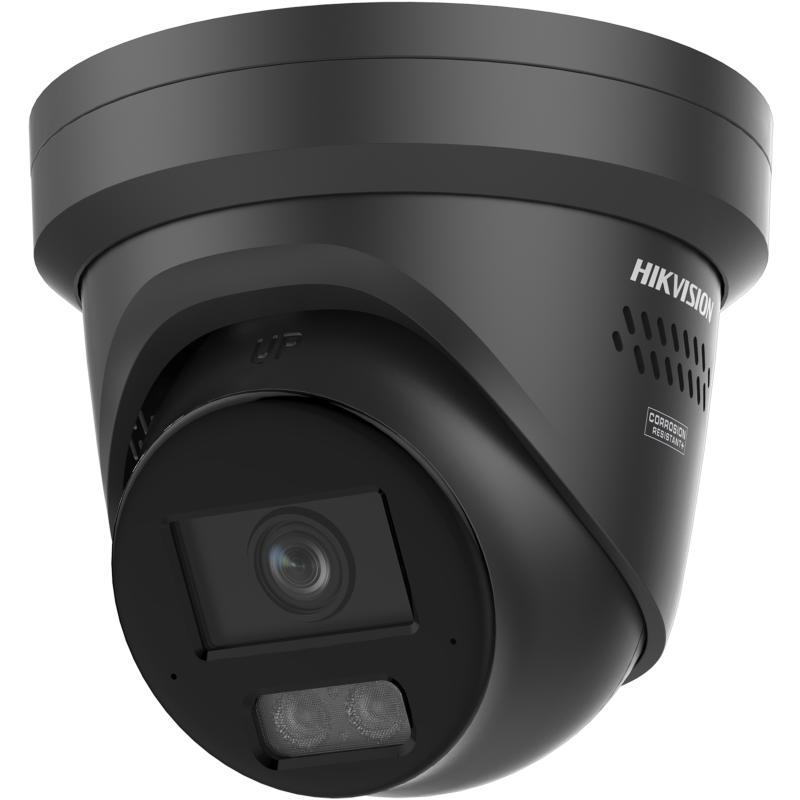

DS-2CD2387G3-LIS2UY/S(L)
8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
- Mükemmel gürültü azaltma etkisi için HikaI-ISP
- ColorVu teknolojisi ile 7/24 renkli görüntüleme
- Sahneye uyarlanabilir WDR
- Derin öğrenmeye dayalı Kişi ve Araç sınıflandırmasına odaklanın
- Gerçek zamanlı yüksek kaliteli ses güvenliği için dahili dizili çift mikrofon
- Yerleşik iki yönlü ses aracılığıyla gerçek zamanlı güvenlik sağlayın
- Korozyon önleyici tasarım, standart (NEMA4X) ile karşılaştırıldığında güvenilirlik ve uzun ömür sağlar
- Akıllı Hibrit Işık: IR ve Beyaz ışıkları entegre eder, 3 ek aydınlatma modu
- Suya ve toza dayanıklı (IP67)
- Ses ve alarm arayüzü mevcuttur
- Davetsiz misafirleri uyarmak için aktif flaş ışığı ve sesli alarm
- Kamera
- Görüntü Sensörü1/1,8" Aşamalı Tarama CMOS'u
- Maks. Çözünürlük3840 × 2160
- Min. AydınlatmaRenk: 0,0005 Lux @ (F1.0, AGC ON),0 Işıklı Lux
- Deklanşör Zamanı1 ila 1/100.000 s
- Gündüz ve GeceIR kesme filtresi
- Açı AyarıPan: 0° ila 360°,tilt: 0° ila 75°,rotat: 0° ila 360°
- Lens
- Lens TürüSabit odak lens, 2,8 ve 4 mm isteğe bağlı
- Odak Uzunluğu ve FOV
- Lens DağıM16
- İris TipiSabitlenmiş
- DiyaframF1.0
- Alan Derinliği
- DORI
- DORI
- Aydınlatıcı
- Supplement Işık TipiBeyaz Işık, IR
- Supplement Işık Aralığı30 m'ye kadar
- Akıllı Supplement IşıkEvet evet
- IR Dalga Boyu850 nm
- Video
- Ana Akım
- Alt Akış
- Üçüncü Akış
- Video Sıkıştırma
- Video Bit Hızı32 Kbps ila 16 Mbps
- H.264 TipiTemel Profil, Ana Profil, Yüksek Profil
- H.265 TipiAna Profil
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Web Browser
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- SNR? 52 dB
- Wide Dynamic Range (WDR)130 dB
- Image StabilizationEIS
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
- Audio
- Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventScene change detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection
- General
- Power
- MaterialCover: metal, main body: metal
- DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
- Package Dimension170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- WeightApprox. 820 g (1.8 lb.)
- With Package WeightApprox. 1200 g (2.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Dil33 dil: İngilizce, Rusça, Estonca, Bulgarca, Macarca, Yunanca, Almanca, İtalyanca, Çekçe, Slovakça, Fransızca, Lehçe, Felemenkçe, Portekizce, İspanyolca, Romence, Danca, İsveççe, Norveççe, Fince, Hırvatça, Slovence, Sırpça, Türkçe, Korece, Geleneksel Çince, Tayca, Vietnamca, Japonca, Letonca, Litvanca, Portekizce (Brezilya), Ukraynaca
- Yanıp Sönen Işık
- Onay
- EMC
- Güvenlik
- ÇevreCE-RoHS: 2011/65/AB
- KorumaIP67: IEC 60529-2013
- Korozyon Önleyici KorumaNEMA 4X (NEMA 250-2018)
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1:2014/A11:2017
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32:2015,
IC: ICES-003: Sayı 7,
KC: KN32: 2015, KN35: 2015
/SRB modeli: Kırmızı ve Mavi Işık
/SL modeli: Beyaz Işık
12 VDC ± 25%, 1.29 A, max. 15.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 17 W
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Built-in Microphone: -2U: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 80+, Firefox 80+, Edge 89+
Up to 32 users
3 user levels: administrator, operator, and user
Ana akış: H.265/H.264/H.264+/H.265+,
Alt akış: H.265/H.264/MJPEG,
Üçüncü akış: H.265/H.264,
*Üçüncü akış belirli ayarlar altında desteklenir.
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 480, 640 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 480, 640 480, 640 360)
*Üçüncü akış belirli ayarlar altında desteklenir.
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3840 × 2160,3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
2,8 mm: D:89 m, O:35 m, R:17 m, I:8 m
4mm: D:109m, O:43m, R:21m, I:10m
2,8 mm: 3,3 m ila ?
4mm: ?'ye 3,8m
2,8 mm, yatay FOV 108,8°, dikey FOV 56,4°, çapraz FOV 134,3°
4 mm, yatay FOV 93.3°, dikey FOV 47.2°, çapraz FOV 114.2°
