FEATURES ATX 3.1 and PCIe Gen 5.1 ready 80 PLUS Gold certified Main Japanese capacitors 120mm Silent Hydraulic Bearing (HYB) Fan Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection Compact design 5 years warranty (Adjusted according to different regions)
ATX 3.1 and Designed to meet the demands of next-gen systems, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 300W for PCIe Gen 5 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
80 PLUS Achieving 90% efficiency at a 50% load, this 80 PLUS Gold certified PSU reduces power loss, minimizes heat generation, and lowers fan noise, ensuring both performance and energy savings.
The life of the main capacitor is over 20 years (Environment 25°C)
HIGH QUALITY The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.
FAN
ACOUSTIC

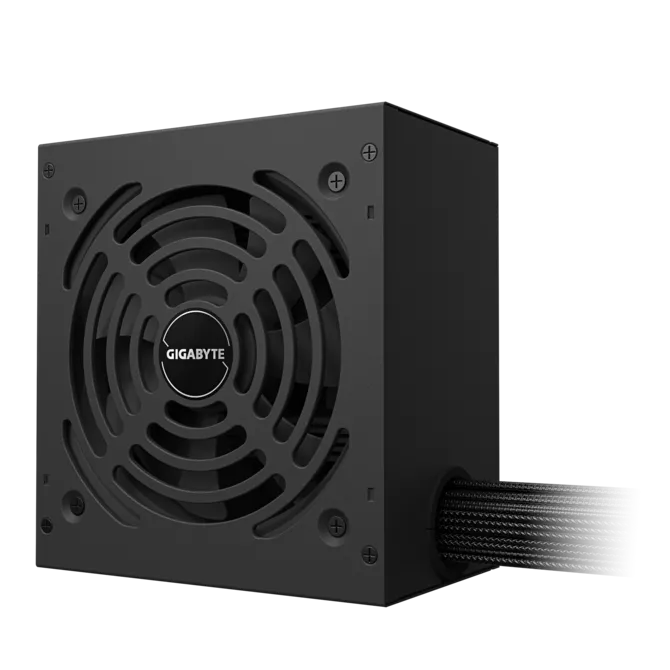

120MM SILENT HYDRAULIC The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.
SINGLE +12V RAIL The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
COMPREHENSIVE PROTECTION Equipped with multiple protection features, this PSU ensures the stable operation of your system, backed by safety certifications from various countries for added peace of mind.
COMPACT DESIGN Thanks to advanced thermal solutions and premium materials, the PSU features a compact size that fits easily into most chassis, maximizing both power and space efficiency.
SOFT-TEXTURED EMBOSSED CABLES The soft-textured, embossed cables reduce friction, preventing wear and tear while keeping your build tidy. The unique patterns add an aesthetic touch and enhance durability, ensuring a clean and long-lasting cable experience.
* All the images in this page are for illustration only.
Model
GP-P650G PG5?
Tip
Intel Form Factor ATX 12V v3.1
PFC
Active PFC(>0.9 typical)
Giriş gerilimi
100-240 Vac
Giriş akımı
10-6A
Giriş Frekansı
60-50 Hz
Çıkış kapasitesi
650W
Ebatlar
150 x 140 x 86 mm
Fan türü
120mm HYB Fan
80 PLUS
Gold
Verim
90% at typical load
MTBF
>100,000 hours
Koruma
OVP/OPP/SCP/UVP/OCP/OTP
Güç Kontrol Sinyali
100-150ms
Bekleme süresi
>17ms
Kablo türü
Embossed, All black
Konektörler
ATX/MB 20+4 Pin x 1 : 600mm*1
